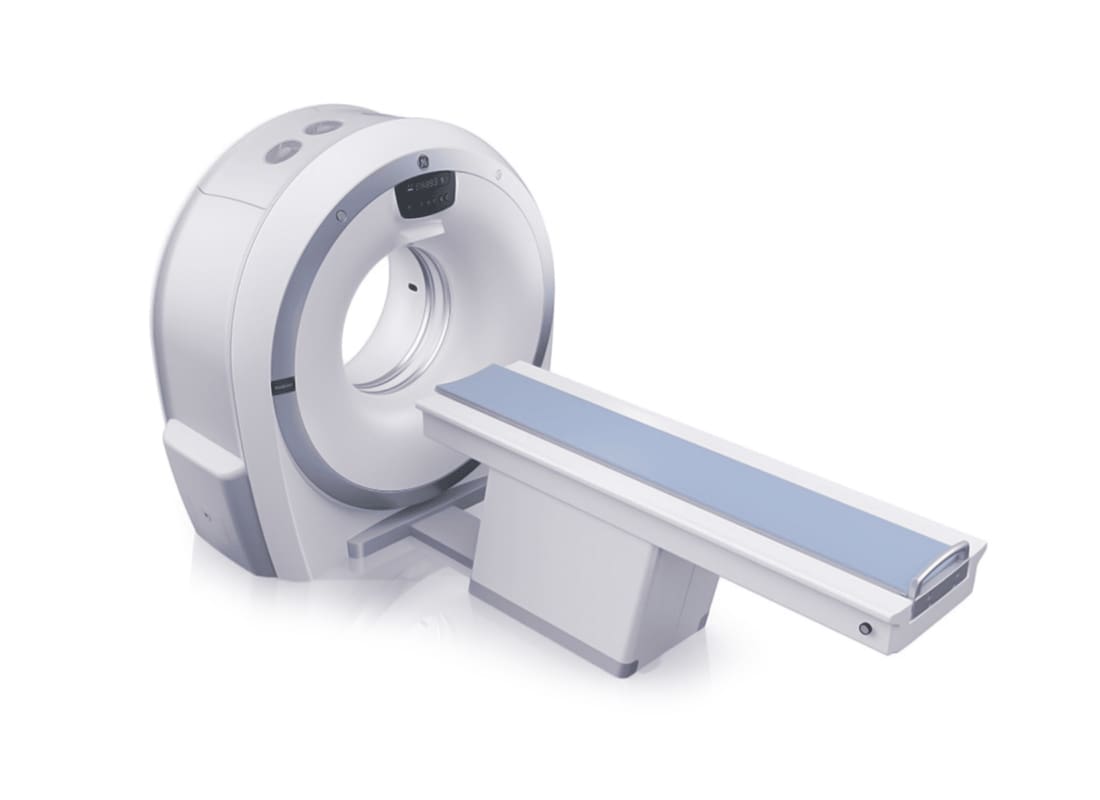

GE Revolution ACT
The Revolution ACT is our most popular CT scanner providing the highest resolution image in a small footprint fan beam CT.

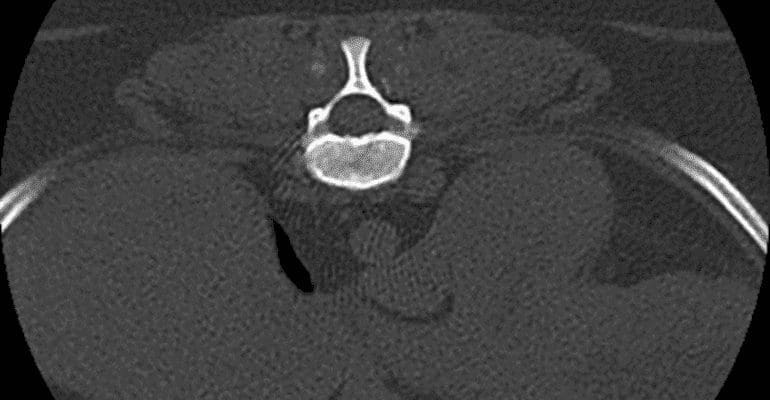

Clinical Images
Using the latest detector panel technology the Revolution ACT consistently produces images with high resolution and quality. The latest liquid bearing tube provides faster cooling and extends lifespan to reduce maintenance.
- 16 slices from 0.625mm to 10mm to cover most veterinary applications 20mm detector provides fast scan times at up to 35mm per second
- High resolution with a spatial resolution of 0.28mm
- New scintillated detector technology 3x more sensitive than older CdWO4 detectors
- Low 3 phase electrical power requirement of 40kVA
- Online system health monitoring to reduce unplanned maintenance
Technical Specifications
Detector type Fan BeamDetector size 20mmNumber of slices 16/ 32Slice thickness 0.625mm to 10mmRotation speed (min) 0.98 secondsGantry bore diameter 65cmField of view 43cmReconstruction speed 22 fpsHeight adjustable table Y 441-900mmScannable range 1,350mmScan speed (Max coverage) 35mm/sResolution 0.28mm spatial resolutionFocal spot size 0.8 x 0.6mmPower range 80 - 140kVMaximum mA 333mA equivalent with ASiRMaximum power 40kW equivalent with ASiRPower requirements 3 Phase 40 kVAMinimum recommended scan room size 4.7M (l) x 3.0M (w)x 2.3 (h)Weight 1,510KgWarranty 1 YearSmall animal Exotic Equine
