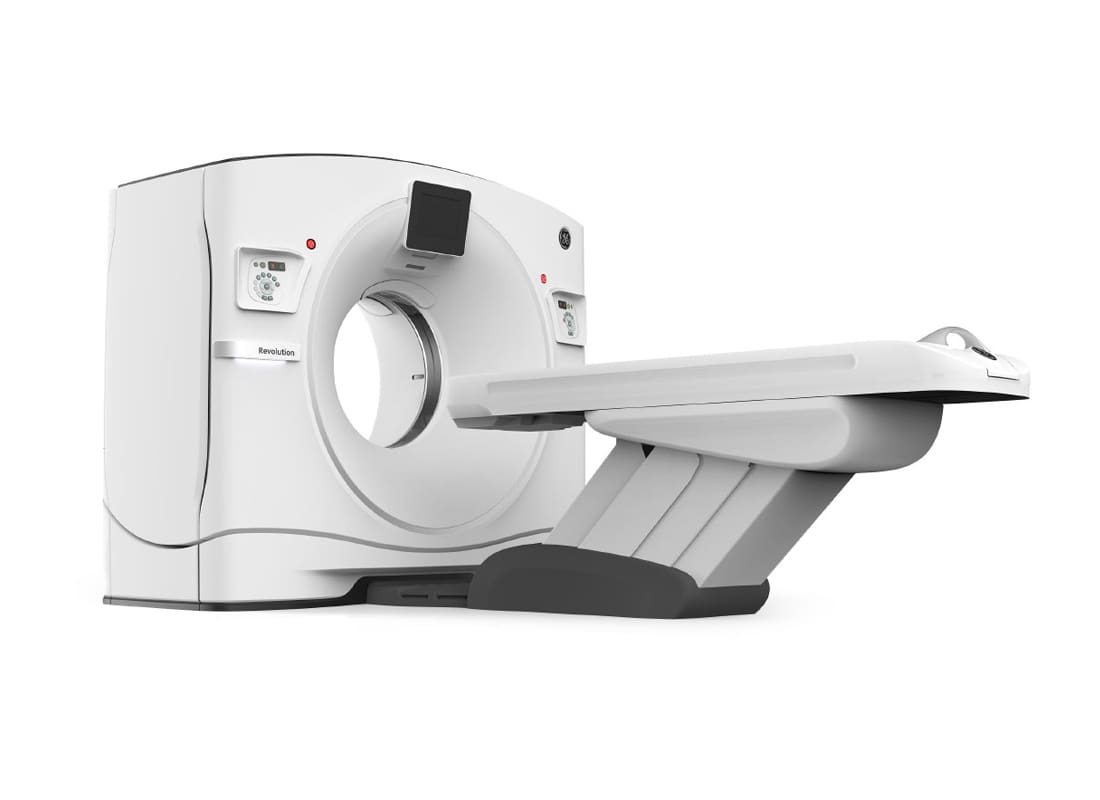

GE Revolution Maxima Select CT

The Revolution Maxima range are GE’s latest CT scanners, a true “workhorse” CT for busy hospitals and referral centres.

  • Find out more

With a large detector panel and incredibly fast rotation time the Revolution Maxima Select can scan large areas quickly 40mm detector panel can scan at up to 175mm/ second Fast rotation time of 0.35 seconds Cost effective 32 slice version can run at 32 x 1.25mm slice thickness or 32 x 0.625mm with same detector High resolution with a spatial resolution of 0.28mm Online system health monitoring to reduce unplanned maintenanceSmart metal artefact reduction provided as standard

Technical Specifications
  • Detector type
    Fan Beam
    Detector size
    40mm
    Number of slices
    32/64
    Slice thickness
    0.625mm to 10mm
    Rotation speed (min)
    0.35 seconds
    Gantry bore diameter
    70cm
    Field of view
    50cm
    Reconstruction speed
    55 fps
    Height adjustable table
    Y 430-991mm
    Scannable range
    1,460-2,000mm (table options)
    Scan speed (Max coverage)
    175mm/s
    Resolution
    0.28mm spatial resolution
    Focal spot size
    0.7 x 0.6mm & 0.9 x 0.9mm
    Power range
    80 - 140kV
    Maximum mA
    560mA
    Maximum power
    55kW
    Power requirements
    3 Phase 75 kVA
    Minimum recommended scan room size
    5.6M (l) x 3.4M (w)x 2.3 (h)
    Weight
    2,877Kg
    Warranty
    1 Year
