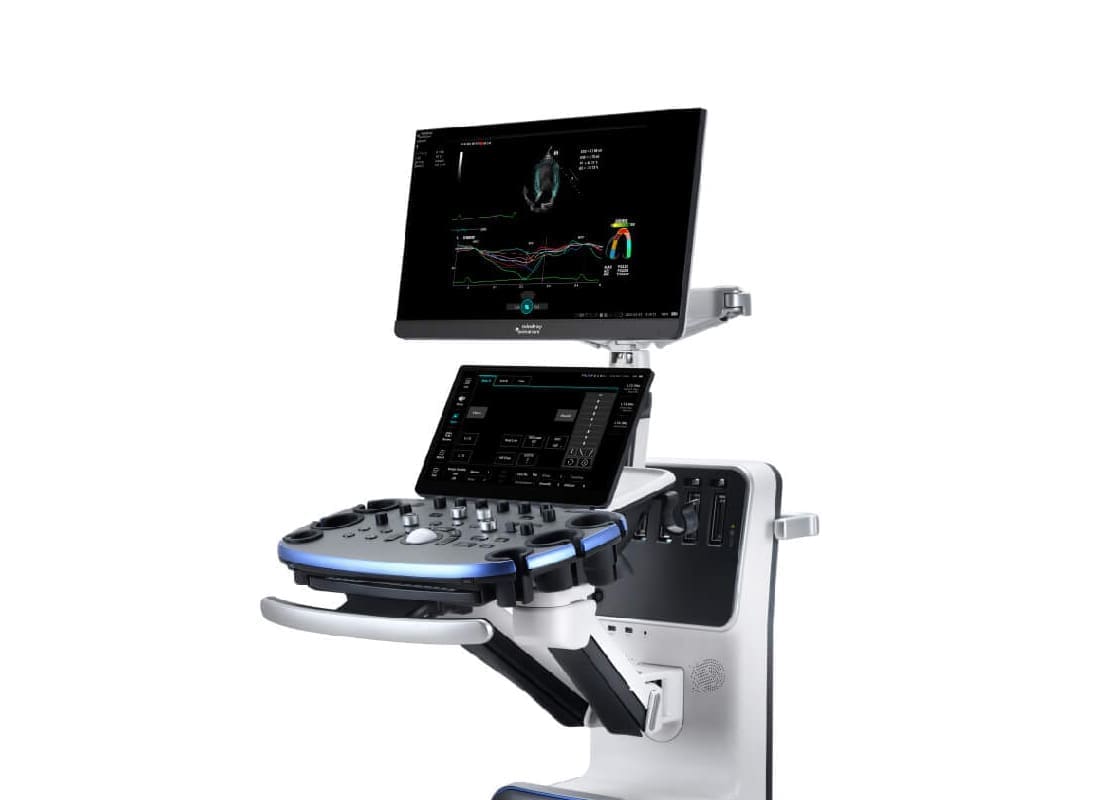

Mindray Vetus 9 Veterinary Ultrasound Scanner
High end shared services cart-based ultrasound system powered by the new cutting edge Zone Sonography® Technology (ZST+) platform, unique to Mindray.
Clinical Images
- Wide ranging viewing screen and control deck articulation to enable more comfortable scanning of larger patients whilst still being in full view of the screen and scanning controls.
- With a sealed user interface design and revolutionary, icon driven imaging presets and ZST+ beamforming technology, the Vetus9 System combines superb image quality with an intuitive user experience to help ensure reliable and efficient diagnosis in a shared services environment.
- 5 probe connector ports giving fast easy access for all of your scanning needs.
Technical Specifications
System type (portable/cart) CartConsole form (clam shell/touchscreen) TrolleyNumber of probe connectors on console 5Screen size 23.8 inchOptional trolley Trolley-basedMulti-probe compatibility on trolley 5Colour Doppler Pulse Wave Doppler Continuous Wave Doppler ECG Width (mm) 550Depth (mm) 1020Height (mm) 1000Weight (kg) 105Battery included? Battery life (mins) 120Warranty 1 yearSmall animal Exotic Equine Bovine
Accessories
The Vetus 9 is available with a comprehensive range of probes for abdominal and musculoskeletal scanning and has a full range of probes and advanced software applications for cardiology.
The Vetus 9 with a single micro-convex probe (M-C11-3) can be used to perform abdominal and cardiac examinations on a wide range of species including dogs, cats, rabbits and reptiles whilst the M-L13-3Ns linear probe is great for superficial high detail work and equine tendons. The curvi-linear SC6-1 (1.2-6 MHz) is the probe of choice for large dogs or horse abdomens.
Add a cardiac probe (such as the M-P8-2s for small animals or SP5-1s for equine) to provide you with a great system to do more advanced heart scans.
