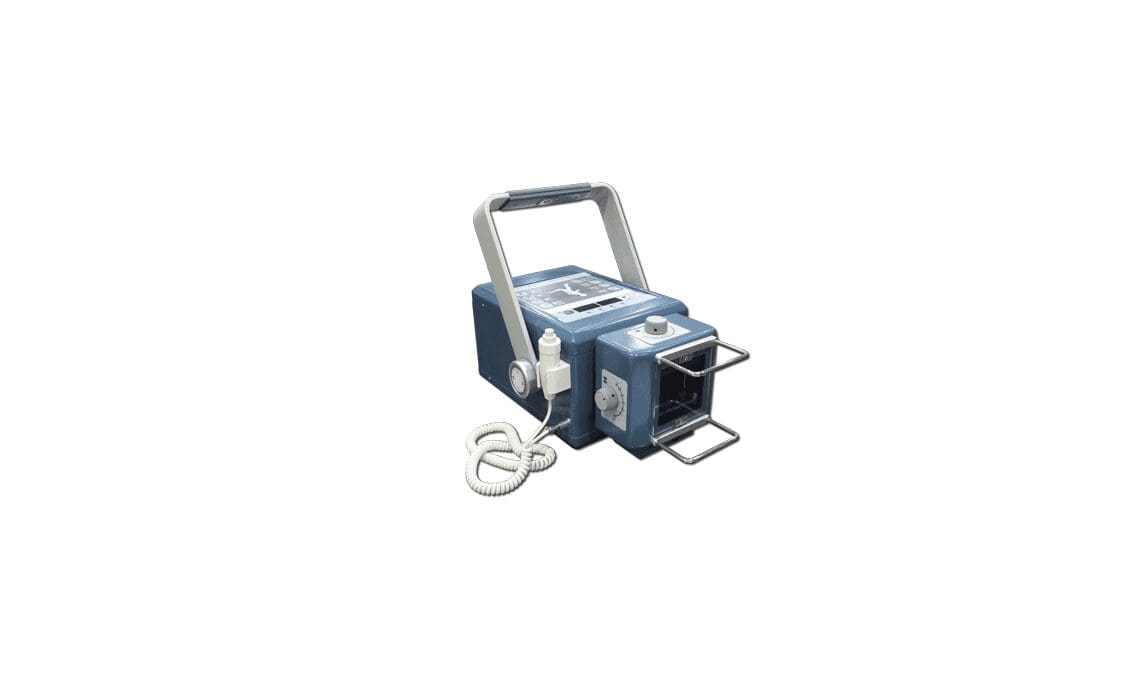

The Ultra 100 HF generator is our most powerful generator for small animal practice with a higher mA output than many other portable generators, making it better suited to abdominal and thoracic imaging. It is also powerful and portable enough to be used for in-field equine spine and stifle imaging. The generator is a self-contained unit and can be used with any X-ray processing technology, CR, DR or even film!

By contrast with the other products, Ultra 100 is equipped with Ultrasonic Sensor providing max 250cm SID (Source to image Distance) measurement with high accuracy of 1cm tolerance. And, the measured SID is automatically displayed on Operation Panel. Another distinguishing feature of ultrasonic Sensor is NO Dead Zone (an area unable to be detected). Besides, its power consumption is very low as only 3.ImA

• 5kW generator with 110kV/100mA power output.
• Focal spot (1.8mm x 1.8mm) to enable good quality orthopaedic, thoracic and abdominal imaging and equine limb and spine radiography.
• Dual laser pointer for indication of distance from target region.
• Tape measure and built-in level gauge.
• Carry handle compatible with X-ray stands, wall arms and floating top table mounting.
• Remote hand switch.
• Easy to read digital display with 8 memory presets, extendable to 16 combinations.
• Aluminium carry case with shoulder strap.
• Mains powered with 6m power cable.
