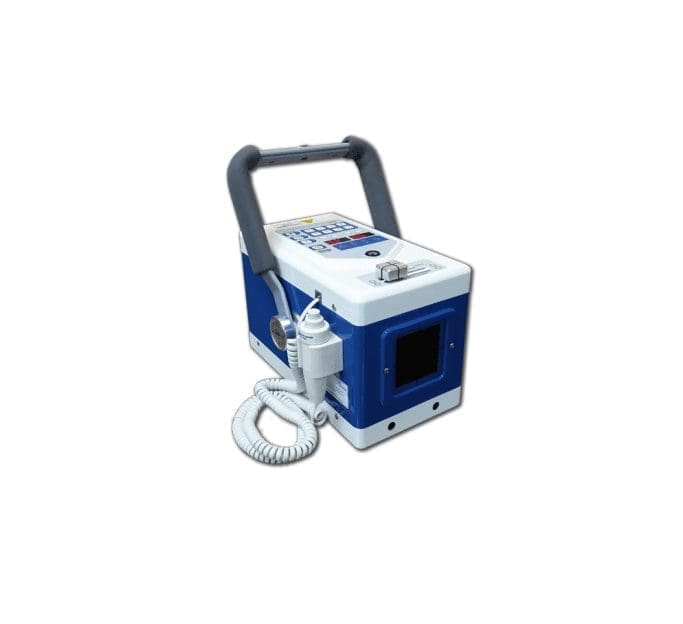

Ecoray Ultra 9020BT Battery Powered Veterinary X-ray Generator
The Ecoray Ultra 9020BT battery powered veterinary X-ray generator is ideal for use with a wireless equine DR X-ray system.
The 9020HF generator combines both power and portability to allow you to take equine X-rays in the field. This generator is perfect for X-raying equine distal limbs. The generator is a self-contained unit and can be used with any X-ray processing technology, CR, DR or even film!
- 90kV/20mA power output.
- Battery powered generator with long-life battery, ideal for equine ambulatory practice.
- Approx. 500 exposures at 80kV & 2mAs from full charge.
- Battery Charge time = 2.5 hours from flat
- Cordless and hybrid functionality.
- Continue to take X-rays whilst on mains charge.
- Lightweight – only 8.5kg. Single handed collimation.
- Small focal spot (1.2mm x 1.2mm) allowing for good quality orthopaedic images.
- Dual laser pointer for indication of distance from target region.
- Tape measure and built-in level gauge.
- Carry handle compatible with X-ray stand mounting.
- Remote hand switch.
- Easy to read digital display with 8 memory presets, extendable to 16 combinations.
- Aluminium carry case with shoulder strap.
Technical Specifications
Portable/Integrated PortableMains or battery BatteryBattery life/no of exposures 6 hoursOutput kV/mAs 90kV/20mAOutput kV range 40-90Output mAs range 0.32-30Power requirements/line voltage NASID measurement (cm) 60Length 280Width 140Height 201Weight 8.5Warranty 1 yearSmall animal Exotic Equine
Accessories
All X-ray generators must be mounted on a stand for health and safety reasons and to comply with RPA and HSE regulations. We can supply a range of stands for small animal and equine use, both in practice and in the field, including Stat-X folding stands from Podoblock.
