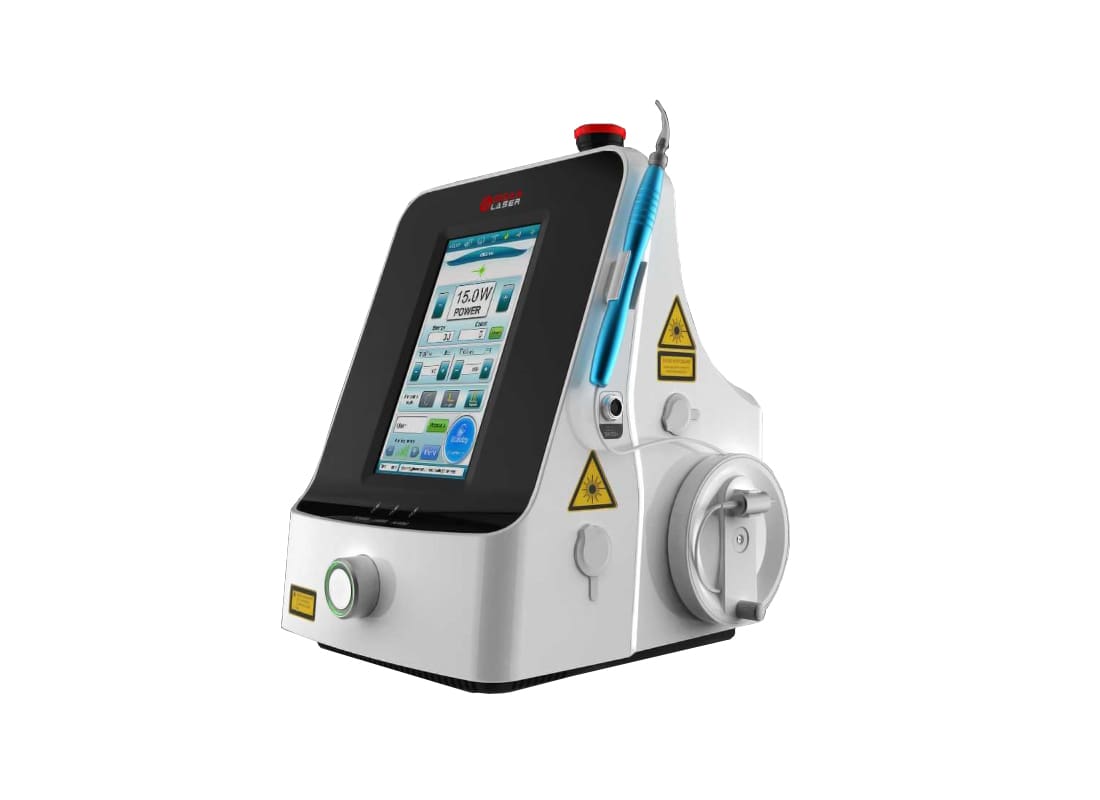

Gbox 15W Mini Surgical and Therapeutic Diode Laser (GLGBOX15W)

Surgical and Therapeutic Laser System, capable of both surgical and therapeutic applications.

  • Find out more
  • Lightweight & portable 4Kgs
  • 8 inch touch screen display
  • User-friendly interface
  • Full accessories for clinic
  • Adjustable aiming beam (pilot light)
  • 15w peak output power
  • 20 KHz top-pulsation for a quick and tissue-protecting performance

The GBOX is the best value, portable diode laser system on the market today. Capable of both surgical and therapeutic applications, this 15w mini laser system has a wavelength of 810nm & 980nm for choice and can be used in the continuous as well as pulsed mode with a contact or non contact handpiece. A therapy handpiece is available for this unit at extra cost.

Technical Specifications
  • Maximum power
    8W@532nm/10W-15 W
    Pulse duration
    10μs-3s Repetition Rate 0.2Hz-20KHz
    Repetition rate
    0.2Hz-20KHz
    Transmissions system fibers
    200um ,400um And 600um
    Connector
    SMA905
    Laser
    Pilot Beam Red Diode Laser Of 635nm, Power<5mW
    Touch screen type
    Control Mode True Colour Touch Screen
    Optional trolley
